AlNiCo Magnets & Custom Assemblies

Features & Characteristics

  • AlNiCo permanent magnets are made up of alloys that include iron, aluminum, nickel, and cobalt. Other elements (e.g., copper and titanium) may be included in minor amounts.

  • AlNiCo magnets are graded based on their cobalt content. This ranges from 0% (AlNiCo 3) to 40% (AlNiCo 8).

  • Lower grades (Mulberry’s AlNiCo 2, 3, and 4) are un-oriented or isotropic. In other words, their magnetic properties are the same in all directions rather than optimized along a particular axis. Magnetic output is relatively low.

    Anisotropic grades (Mulberry’s AlNiCo 5, 6, 8, and 9) are designed to produce high magnetic output in a specified direction. We achieve orientation of magnetic output during heat treatment by controlled cooling of the product from about 2000°F within a magnetic field.

  • AlNiCo magnets are heat-resistant, produce a strong magnetic field, and are durable. Their ability to conduct electricity makes them useful in a variety of applications.

Applications

  • Electric Motors

    AlNiCo magnets are stable at high temperatures and reliable over time, making them a common choice for use in electric motors.

  • Precision Instruments

    Precision measuring instruments such as speedometers and tachometers utilize AlNiCo magnets because of their accuracy and consistency in changing conditions.

  • Aerospace Components

    Aircraft gyroscopes and navigation equipment use AlNiCo magnets because of their resilience in temperature extremes and their ability to withstand vibrations.

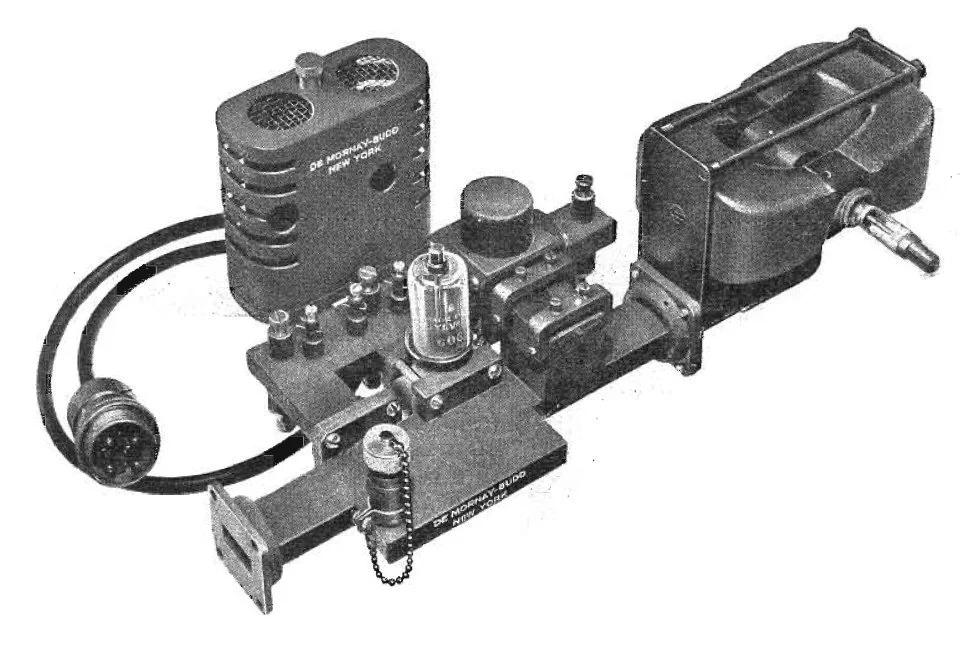

  • Military Radar Equipment

    Radar systems rely on AlNiCo magnets because they can withstand temperature extremes reliably.

Mulberry Magnetics is an integrated supplier of AlNiCo magnets. We adjust product composition to meet our customers’ exact specifications.
